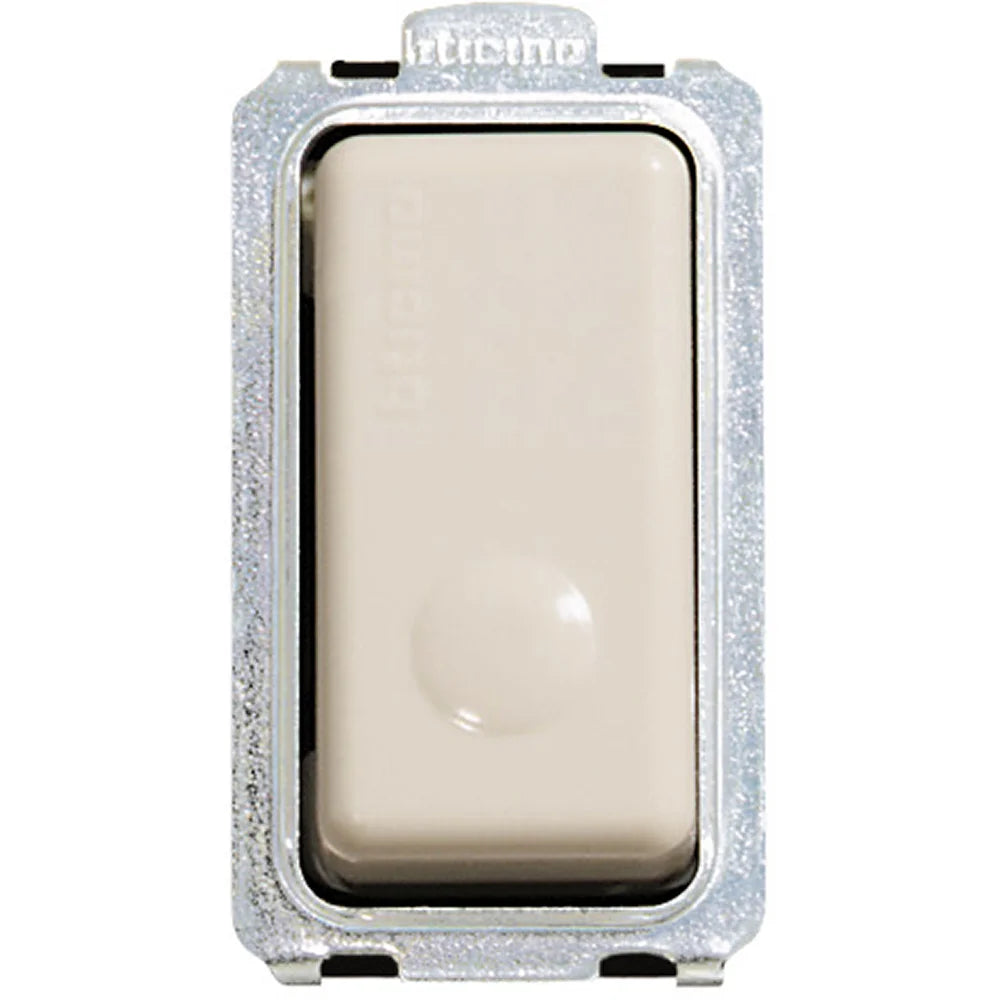

BTicino Magic Pushbutton 1P NO 10A with Light BT-5005N

Key Features:

• Brand: BTicino

• Model: Single Push Button

• Operation: Push Button

• Number of Rockers: 1

• Number of Poles: 1

• Normally Open Contacts: 1

• Normally Closed Contacts: 0

• Change-Over Contacts: 0

• Module Size: 1 Module

• Nominal Voltage: 250V AC

• Rated Current: 10A

• Lighting: Yes

• Complementary Luminous Signal: Yes

• Mounting: Module Frame

• Fastening: Snap/Engage Mounting

• Connection: Screwed Terminal

• Material: Plastic

• Material Quality: Thermoplastic

• Halogen Free: Yes

• Colour: White

• RAL Colour: Similar to RAL 9001

• Finish: Glossy

• Protection Rating: IP20

• Transparent: No

• Imprint: None

Dimensions:

• Width: 23.1 mm

• Height: 40.5 mm

• Depth: 35.4 mm

• Built-in Depth: 35.4 mm

• Minimum Installation Box Depth: 40 mm

Operating Conditions:

• Operating Temperature: -5°C to 50°C

• Storage Temperature: -10°C to 70°C

• Frequency: 50–60 Hz

• Cable Section: 2.5 mm²

Smart Home Compatibility:
This model is not compatible with Apple HomeKit, Google Assistant, Amazon Alexa, or IFTTT.

Shop BTicino Push Button Switches from Chinoy Electric for reliable switching, clean design, and practical electrical control solutions.
